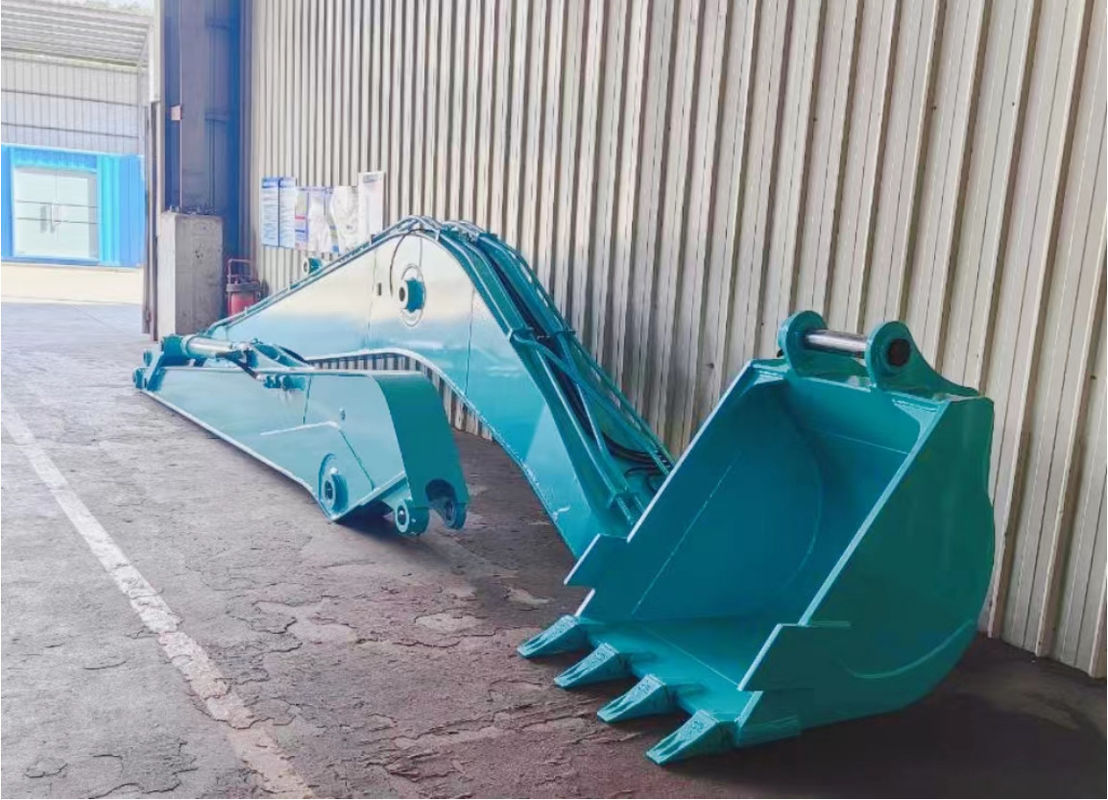

Custom Excavator Long Reach Kobelco Attachments Boom Stick with Bucket and Cylinder
For more products:
Product Presentation of Excavator Boom
This is very accurate because the standard arm length of the excavator can not meet some working conditions, so more and more excavators use extended arms to fill this gap, such as the foundation works of deep pit operations, the demolition of buildings for high-altitude operations, or river cleaning. The extension arm must be used for the construction and maintenance of the site to efficiently and quickly complete all indicators required by the project.
River dredging
The continuous expansion of the city and the demolition of the old city. For the sake of safety, the government did not demolish the relatively lower floors by blasting but chose three sections of outstretched arms for demolition. The three-section extension arm adds a section of the intermediate arm on the basis of the original two-section extension arm. The middle arm can greatly protect the driver's safety. The third stage extension arm works with a hammer or hydraulic shear.
| Material Use |
Q345B, Q550D, Also can customize to customer requirements |
| Product Warranty Period |
6 months,9 months,1 Year |
| Product Size |
Most lengths can be 34M, According to customer requirements, Any excavator model |
Advantages of Zhonghe Excavator Long Arm
1. Less maintenance work
Use high-quality materials, such as Q355B (default), Q690D (optional), Ningbo connector, seamless precision pipe, graphite alloy copper sleeve and solid but lightweight bucket cylinder.
2. Robust and durable
Built-in reinforcing rib. Professional welding skills for different bearing positions. Groove preparation before welding (45 ° edge mining).
3. Tolerance is within 5-10um
The drilling tolerance is within 5-10um to ensure accuracy.
4. Deeper and higher
The maximum working range and the maximum digging height are larger because the angle between the boom and the arm can reach 163 degrees.
5. High efficiency and fuel saving
It is lighter and takes quality into account, which not only ensures work efficiency but also saves fuel.
6. Fillet weld test
We can determine the quality of fillet welds by performing NDT and mechanical tests. Macroscopic inspection and fillet weld fracture test can well observe the weld profile, fusion and penetration, and reveal whether there are any defects in the weld, such as pores or inclusions. These tests are used to test the welder's ability to weld fillet welds.
What Zhonghe Can Do
Customized:
1. Applicable to excavators of all brands.
2. Color, length and material can be made according to your requirements.
3. Additional pipes can be added to accommodate some additional applications.
4. Boom cylinder and stick cylinder can also be provided according to customer requirements.
Strong production capacity:
We can produce 50 sets of excavator arms per month.
The annual output of various excavator arms is 600 sets.
Good service:
1.24 hours of online support.
2. Reservation video technical support.
(Our engineers have focused on excavator arms and accessories for more than 10 years)
3. The long arm of the excavator shall be a two-section/three-section joint, which can be loaded into the container to save freight.
Guarantee:
1 year for long arm, 180 days for the cylinder and connecting rod, and 90 days for the bucket.
All parts you needed are included.
Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, and Cylinder.
|

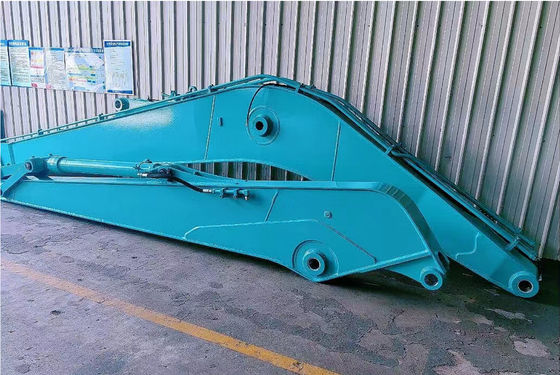

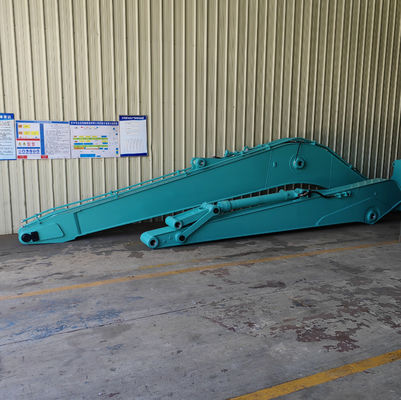

Excavator long boom
|
Excavator long arm
|

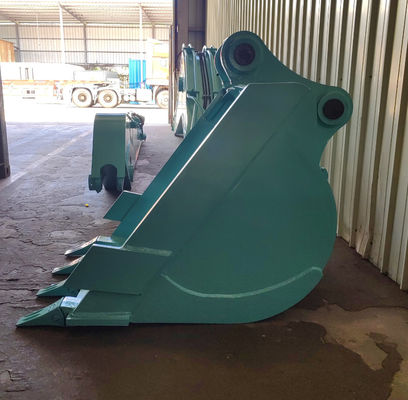

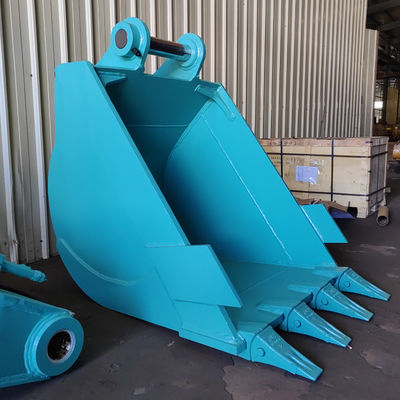

Standard bucket
|
|
Linkage kit
|
Bucket cylinder
|
Butter hose
|
|
Pin
|
Lubricating system
|
Seals
|
Specification of Excavator Boom Arm
Weight
|
Model
|
Part Length
|
Total length(m)
|
Weight(kg)
|
Maximum removal height(m)
|
| Total Length(mm) |
25T |
8.5 |
16 |
2800 |
16M |
| Boom(A)(mm) |
2.3 |
900 |
| Arm(b)(mm) |
5.2 |
1700 |
| Maximum Digger Radius(C)(mm) |
30T |
9.5 |
18 |
3000 |
18M |
| Maximum Digger Depth(C)(mm) |
2.3 |
1000 |
| Maximum Unloading Height(E)(mm) |
5.2 |
1950 |
| Maximum Digger Height(F)(mm) |
35T |
10.5 |
20 |
3500 |
20M |
| Bucket Volume(m³) |
2.3 |
1100 |
Company Strength
Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
Our annual output of various types of excavator boom arms can reach 600 sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.
FAQ of excavator long arm
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middle sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save you cost.
Q2: How long is the boom arm can min excavator be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, the 30-40 excavator longest arm suggests to be 8 meters, and can configure 0.1 cbm bucket, with no need for an extra counterweight. 55 excavator's longest arm suggests to be 12 meters, which can configure 0.1-0.15 cbm bucket, which needs 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longes the t length as mini excavator is easy to slosh.
Q3: How long will it take tall an excavator long reach boom?
It depends on the installer and machine size.
Usually disconnecting the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, use to prepare several containers to fill the oil before disassembling.
